Endpoint Groups

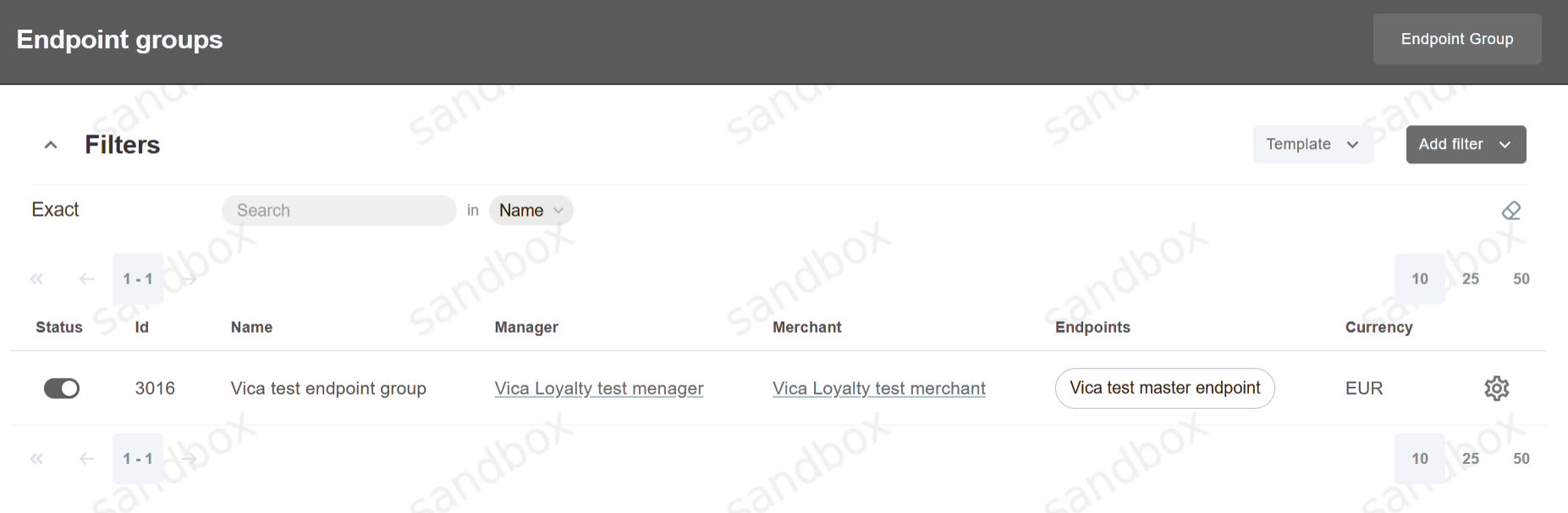

Endpoint group is an entity that combines several Endpoints and Master Endpoints in different currencies. The Endpoint Group simplifies the integration of a Connecting Party business to SBC Payment Gateway when working with various currencies. This screen allows to view configured Endpoint Groups.

pic106 merchant faq

Here is shown the structure and logic of Endpoint Group:

title Options for multi-currency processing integration package "Integration to Endpoint Group" { class "layoutHelper1" #ffe6cc;line:black;line.dotted class "Project\n currency A" #dae8fc;line:black;line.dotted class "Project\n currency B" #dae8fc;line:black;line.dotted class "Endpoint\n currency A" #ffe6cc;line:black;line.dotted class "Endpoint\n currency B" #ffe6cc;line:black;line.dotted class "Endpoint\nGroup" #ffe6cc;line:black;line.dotted } package "Integration to multiple Endpoints" { class "layoutHelper2\n" #ffe6cc;line:black;line.dotted class "Project\n currency C" #dae8fc;line:black;line.dotted class "Project\n currency D" #dae8fc;line:black;line.dotted class "Endpoint\n currency C" #ffe6cc;line:black;line.dotted class "Endpoint\n currency D" #ffe6cc;line:black;line.dotted } class "layoutHelper3" #ffe6cc;line:black;line.dotted class "Connecting Party\n (Merchant)" #e1d5e7;line:black;line.dotted "Connecting Party\n (Merchant)" -left-> "Endpoint\nGroup" "Connecting Party\n (Merchant)" -down-> "layoutHelper3" "Connecting Party\n (Merchant)" -down-> "Endpoint\n currency C" "Connecting Party\n (Merchant)" -down-> "Endpoint\n currency D" "Endpoint\nGroup" -down- "Endpoint\n currency A" "Endpoint\nGroup" -down- "Endpoint\n currency B" "Endpoint\n currency C" -down- "Project\n currency C" "Endpoint\n currency D" -down- "Project\n currency D" "Endpoint\n currency A" -down- "Project\n currency A" "Endpoint\n currency B" -down- "Project\n currency B" "Connecting Party\n (Merchant)" -left[hidden]- "layoutHelper1" "Connecting Party\n (Merchant)" -right[hidden]- "layoutHelper2\n" "layoutHelper1" -[hidden]- "Endpoint\n currency A" "layoutHelper1" -[hidden]- "Endpoint\n currency B" "layoutHelper2\n" -[hidden]- "Endpoint\n currency C" "layoutHelper2\n" -[hidden]- "Endpoint\n currency D" hide members hide circle hide layoutHelper1 hide layoutHelper2\n hide layoutHelper3
